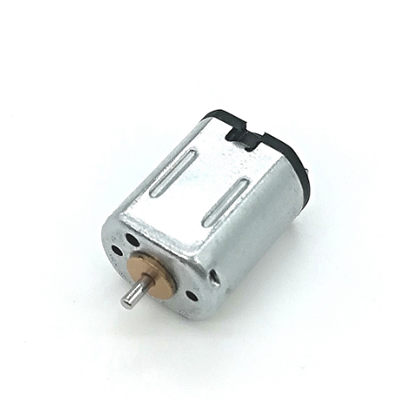

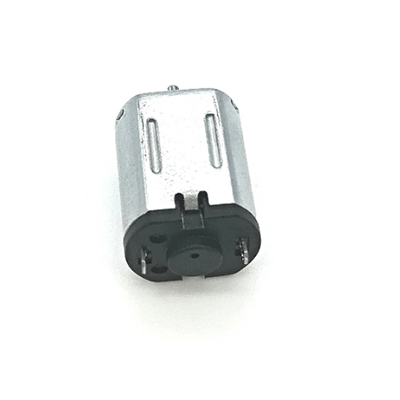

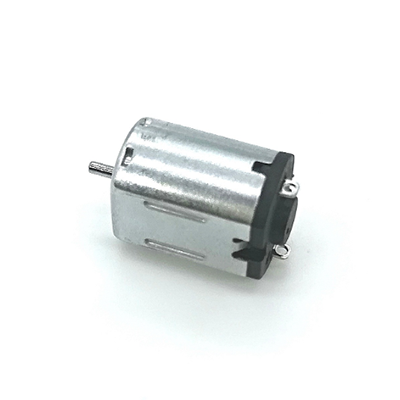

TF-M11F-09120 4.5V 33000rpm DC brush motor
Model: TF-M11F-09120
voltage: 1.0-6.0V
Weight:3.0g

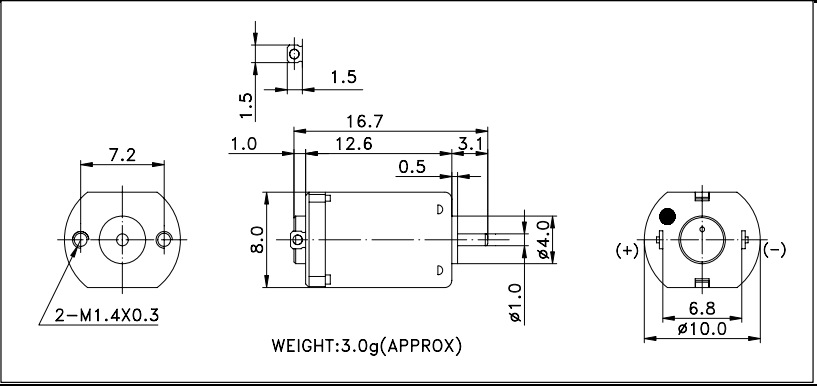

Motor Outline:

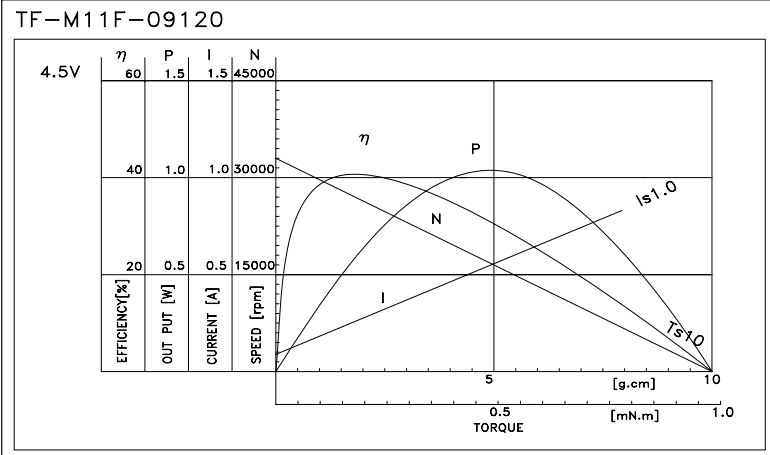

CONDITION @ 4.5V | TYPE | VALUE | TOLERANCE |
NO LOAD | SPEED (rpm) | 33000 | ±15% |
CURRENT (A) | 0.08 | 0.1MAX | |
AT MAXIMUM EFFICIENCY | SPEED (rpm) | 25724 | ±15% |
CURRENT (A) | 0.28 | 0.34MAX | |
TORQUE (mN.m) | 0.22 | 0.17MIN | |
TORQUE (g.cm) | 2.20 | 1.76MIN | |
OUTPUT (W) | 0.58 | 0.47MIN | |
EEF (%) | 45.7 | 36.6MIN | |
STALL | TORQUE (mN.m) | 0.98 | 0.78MIN |
TORQUE (g.cm) | 10 | 8MIN | |
CURRENT (A) | 1 | 1.2MAX |
