| Model: | GBM6208H-150T | No load current (A): | 0.086 |
| Voltage range(Lipo): | 3-6S | Inner diameter of the shaft (mm): | 12.6 |
| Turns: | 150T | Shaft diameter (mm): | 15 |
| Maximum current (A): | 10 | Maximum power (W): | 220 |

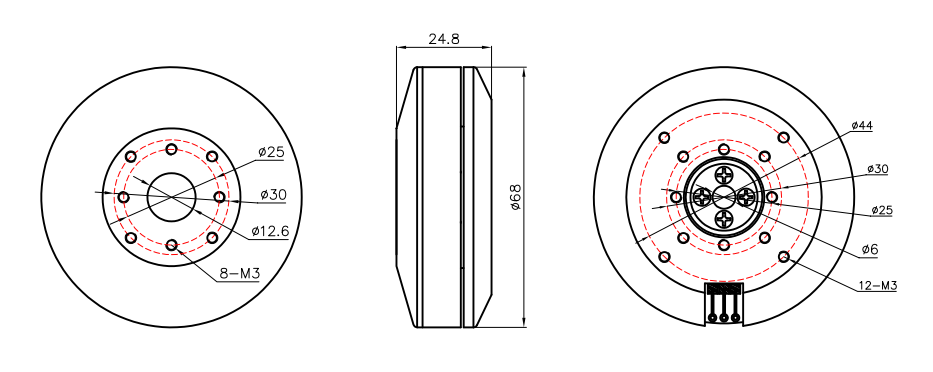

| Motor size : | 68mm(OD)*24.8mm | Wire length (mm): | Black JR connector wire length 600mm |
| Stator size : | 61.5mm(OD)*8mm | Motor structure: | 24N22P |
| KV: | 25 | Stall torque N.M/V: | 0.485/3S |

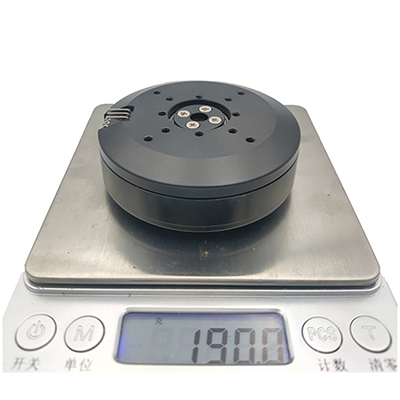

| Internal resistance of coil Ω: | 11.5 | Motor weight including wire | 190g |
