| Model: | GBM8112H-90T | No load current (A): | 0.089 |
| Voltage range(Lipo): | 3-8S | Inner diameter of the shaft (mm): | 12.6 |
| Turns: | 90T | Shaft diameter (mm): | 15 |
| Maximum current (A): | 12 | Maximum Power(W): | 355 |

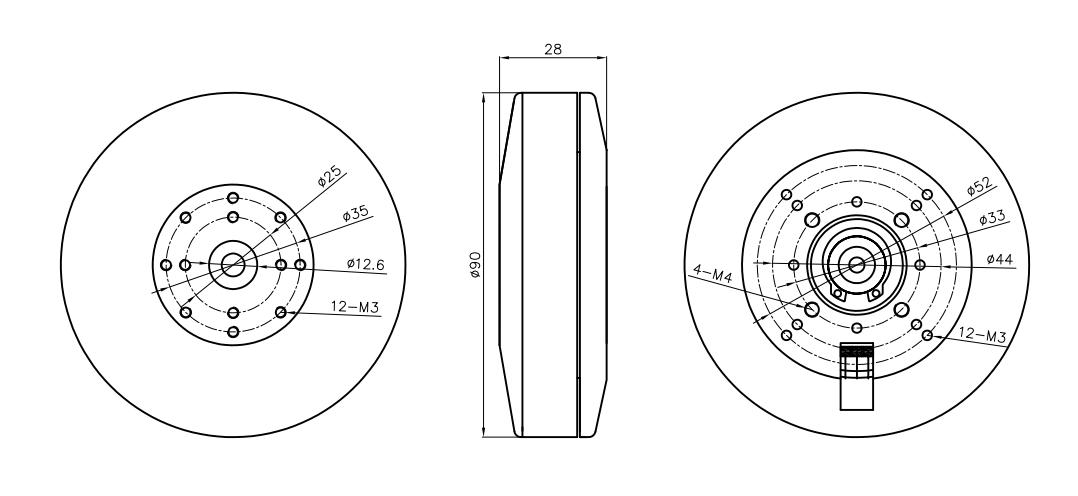

| Motor Size: | 90mm(OD)*28mm | Wire length (mm): | Black JR connector twisted wire 660mm |

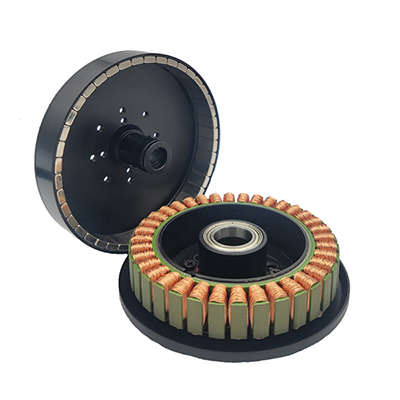

| Stator size: | 81mm(OD)*12mm | Motor structure: | 36N42P |
| KV value: | 11 | Stall torque N.M/V: | 1.55/3S |

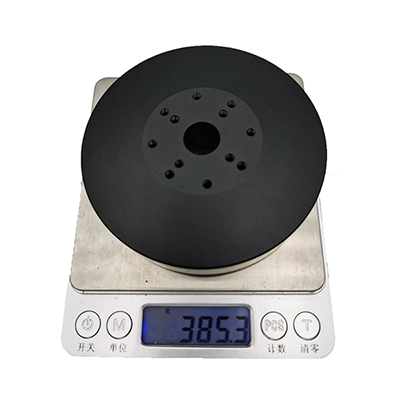

| Internal resistance of coil Ω: | 7.5 | Motor weight including wire： | 385.3g |
