| Model: | GBM6212H-150T | No load current (A): | 0.09 |
| Voltage range(Lipo): | 3-6S | Inner diameter of the shaft (mm): | 12.6 |
| Turns: | 150T | Shaft diameter (mm): | 15 |
| Maximum current (A): | 11 | Maximum power (W): | 239 |

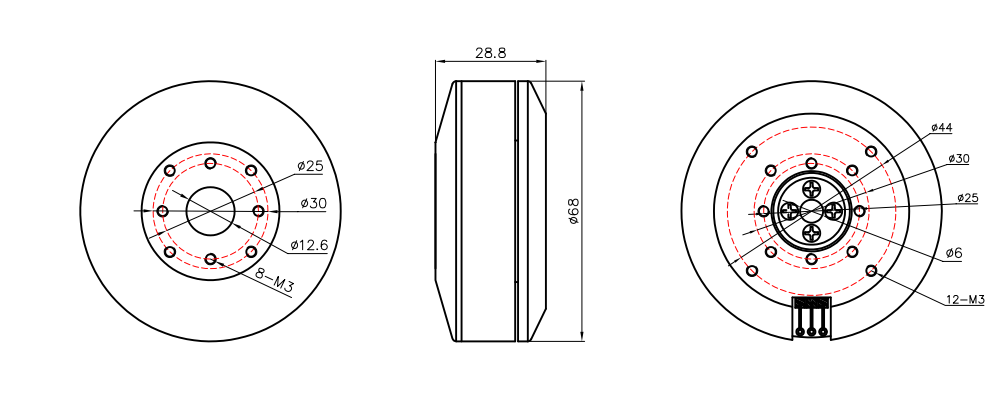

| Motor Size: | 68mm(OD)*28.8mm | Wire length (mm): | Black JR connector twisted wire 600mm |
| Stator size : | 61.5mm(OD)*12mm | Motor structure: | 24N22P |
| KV Value: | 19 | Stall torque N.M/V: | 0.556/3S |

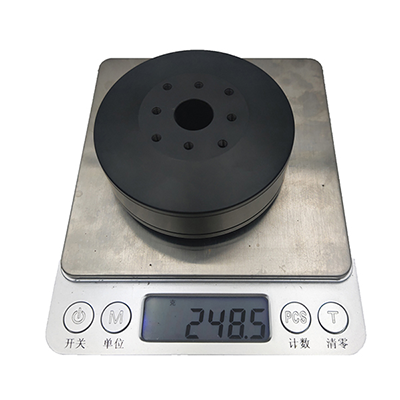

| Internal resistance of coil Ω: | 15.2 | Motor weight including wire: | 248.5g |
