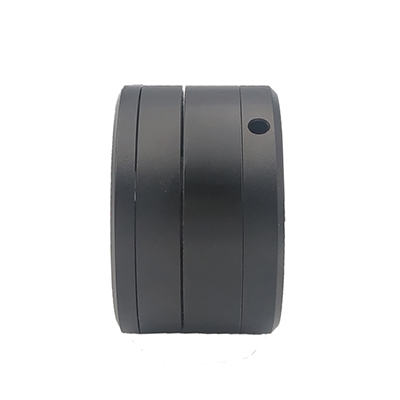

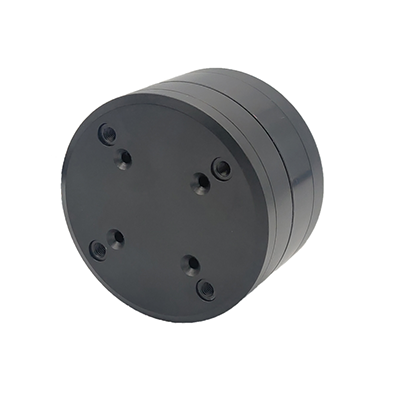

| Model: | GBM4108H-120T | No load current (A): | 0.1 |
| Voltage range(Lipo): | 3-6S | Inner diameter of the shaft (mm): | 5.0 |
| Turns: | 120T | Shaft diameter(mm): | 7.0 |
| Maximum current (A): | 6 | Maximum power(W): | 131 |

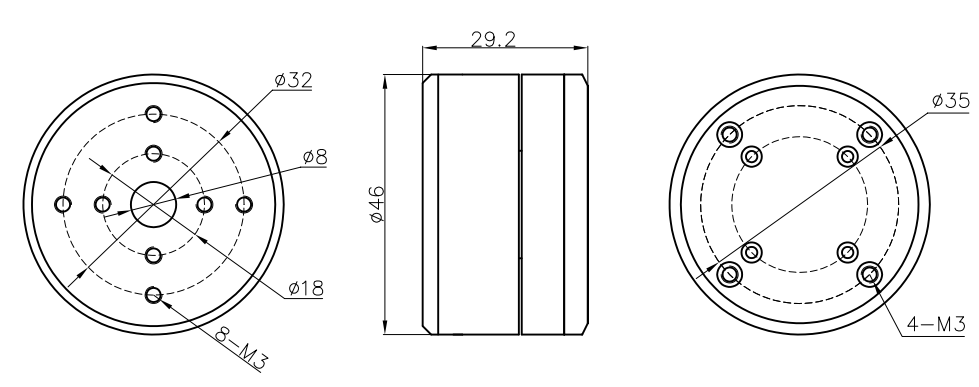

| Motor Size: | 46mm(OD)*25mm | Wire length (mm): | Black JR connector silicone wire 250mm |

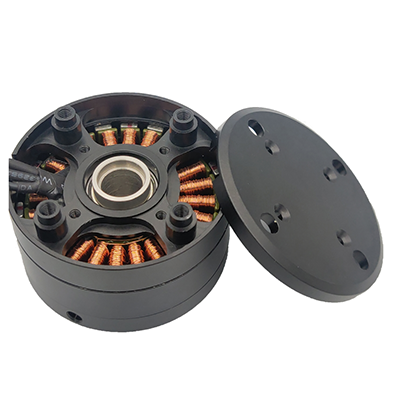

| Stator size: | 40.6mm(OD)*8mm | Motor structure: | 24N22P |
| KV Value: | 56 | Stall torque N.M/V: | 0.235/3S |

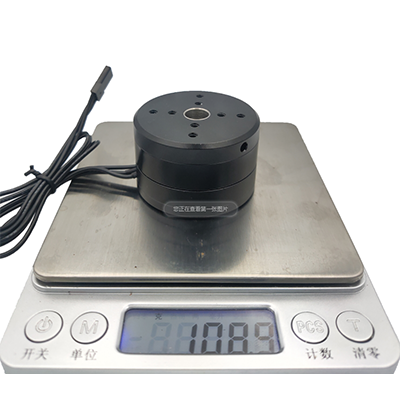

| Internal resistance of coil Ω: | 11.2 | Motor weight including wire : | 108.9g |
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Huizhou Techno Motor CO.,Ltd.(Huizhou Tejia electric Motor CO., Ltd.) was established in 2011. We are a factory specialized in R & D, manufacturing and sales of DC brush motors, brushless motors and gimbal motors. We have ISO quality system, and products have CE, ROHS and other certifications. Main products are DC brush motors, brushless motors and gimbal motors, which are widely used in toys, household appliances, office equipment, medical equipment, remote control models, aircrafts, electronic door locks, etc., as well as some industrial uses. Customized services OEM & ODM are provided according to the needs of guests. Factory technicians have been engaged in the micro-motor industry for more than 20 years and have rich experience in R & D, manufacturing and customer service. The factory has a large number of automated production equipment, testing equipment, factory brand Technomotor has been widely recognized by domestic and foreign guests, products are exported to Greece, Turkey, Japan, South Korea, Australia and other countries. Welcome to contact us!
