| Model: | GBM8120H-90T | No load current (A): | 0.078 |
| Voltage range(Lipo): | 3-8S | Inner diameter of the shaft (mm): | 12.6 |
| Coil turns: | 90T | Shaft diameter (mm): | 15 |
| Maximum current (A): | 13 | Maximum power (W): | 385 |

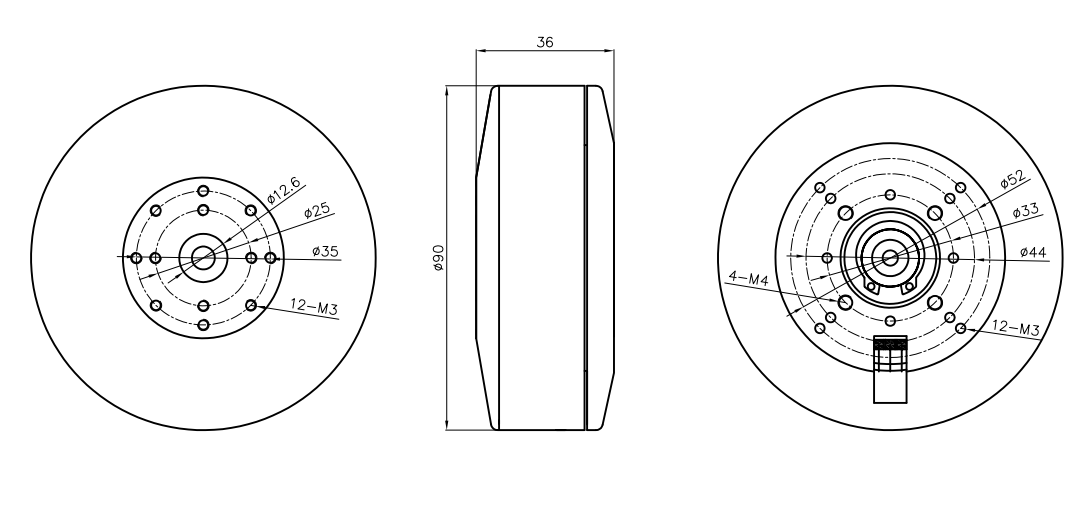

| Motor Size: | 90mm(OD)*36mm | Wire length (mm): | Black JR connector twisted wire 660mm |
| Stator Size: | 81mm(OD)*20mm | Configuration | 36N42P |
| KV value: | 6 | Stall torque N.M/V: | 2.03/3S |

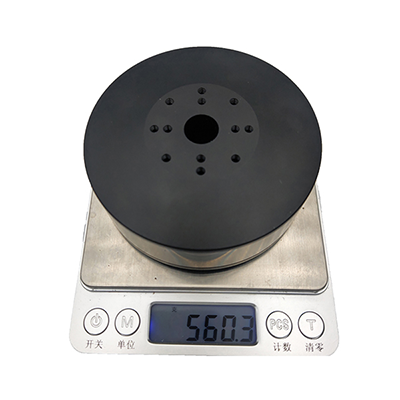

| Internal resistance of coil Ω: | 11.5 | Motor weight including wire: | 560.3g |
