| Model: | GBM4114H-120T | No load current (A): | 0.096 |
| Voltage range(Lipo): | 3-6S | Inner diameter of the shaft (mm): | 5.0 |
| Turns: | 120T | Shaft diameter (mm): | 7.0 |
| Maximum current (A): | 8 | Maximum Power(W): | 174 |

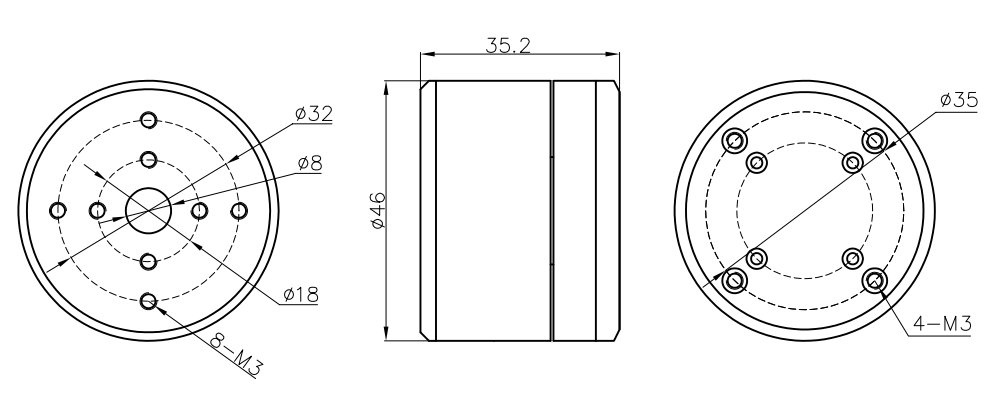

| Motor Size: | 46mm(OD)*31mm | Wire length (mm): | Black JR connector silicone wire 250mm |
| Stator Size: | 40.6mm(OD)*14mm | Motor structure: | 24N22P |
| KV value: | 29 | Stall torque N.M/V: | 0.275/3S |

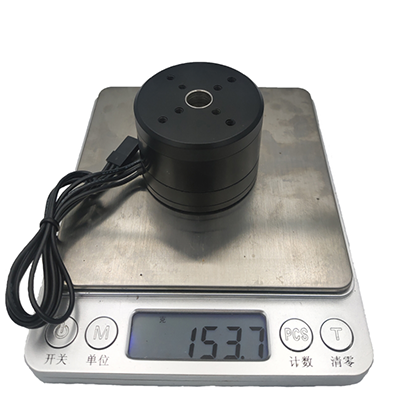

| Internal resistance of coil Ω: | 16.5 | Motor weight including wire: | 153.7g |
