| Model: | GBM110H-150T | No load current (20V) (A): | 0.066 |
| Voltage range (Lipo): | 3-8S | Shaft inside diameter (mm): | 12.6 |
| Coil turns: | 150T | Shaft diameter (mm): | 17 |
| Maximum current(A): | 13 | Maximum Power (W): | 377 |

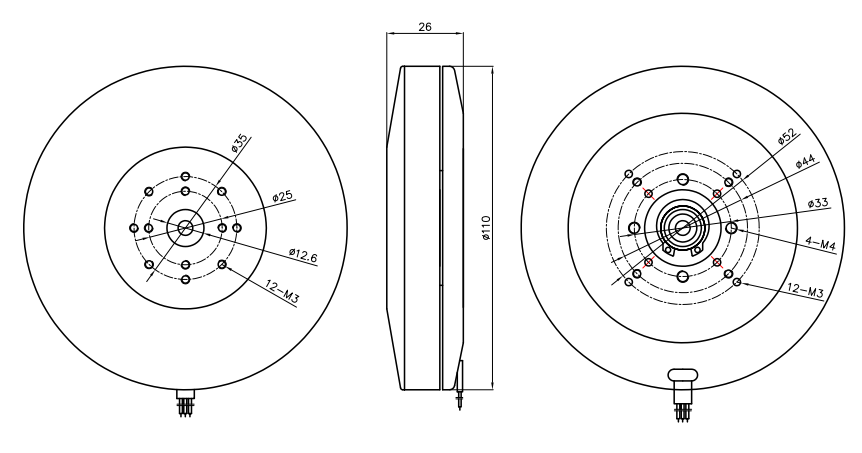

| Motor Size: | 110mm(OD)*26mm | Wire length (mm): | Black JR connector twisted wire 660mm |
| Stator Size: | 100mm(OD)*8mm | Configuration: | 24N28P |
| KV Value: | 7 | Stall torque N.M/V: | 1.18/3S |

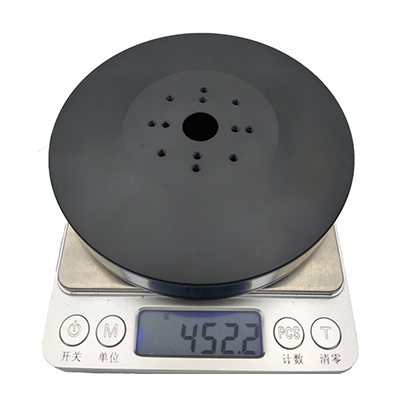

| Coil resistance Ω: | 17.5 | Motor weight (g) Incl.cable | 460 |
