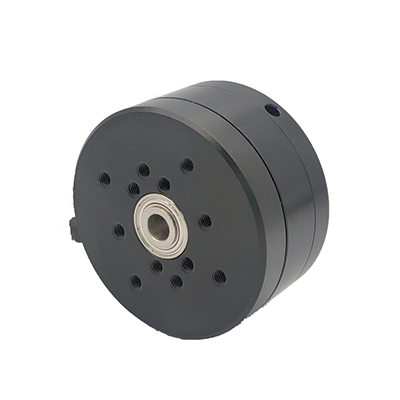

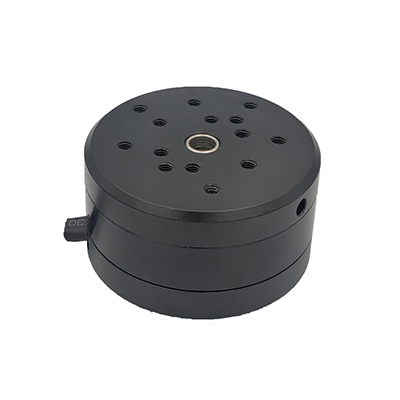

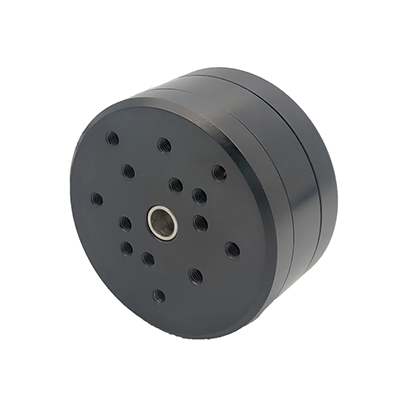

Model:GBM4108H-120T
No load current (A):0.1
Voltage range (Lipo):3-6S
Inner shaft diameter(mm):5.0
Turns:120T
Shaft diameter (mm): 7.0
Maximum current (A):6
Maximum power (W):131
Motor size :46mm(OD)*25mm
Wire length (mm): Black JR connector silicone wire 250mm
Stator size :40.6mm(OD)*8mm
Motor structure :24N22P
KV Value:56
Stall torque N.M/V 0.235/3S
Internal resistance of coil Ω:11.2

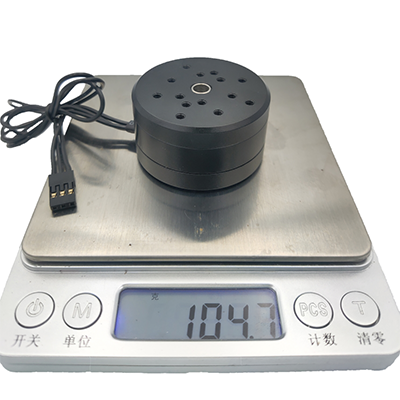

Motor weight including wire :104.7g
