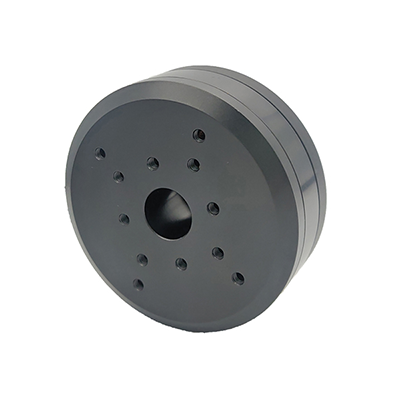

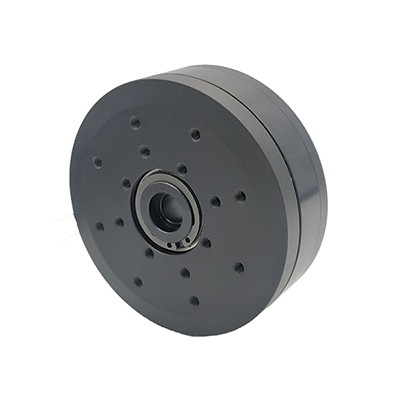

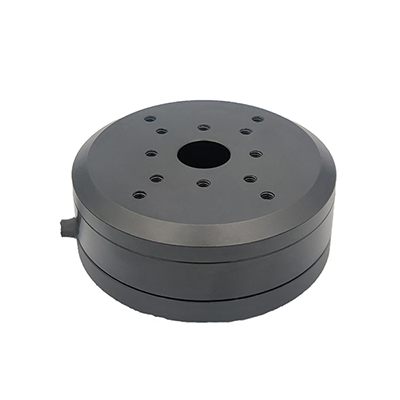

Model:GBM5208H-200T
No load current (A):0.066
Voltage range (Lipo):3-6S
Inner diameter of the shaft (mm):12.6
Turns:200T
Shaft diameter (mm): 15
Maximum current (A):10
Maximum Power(W):218

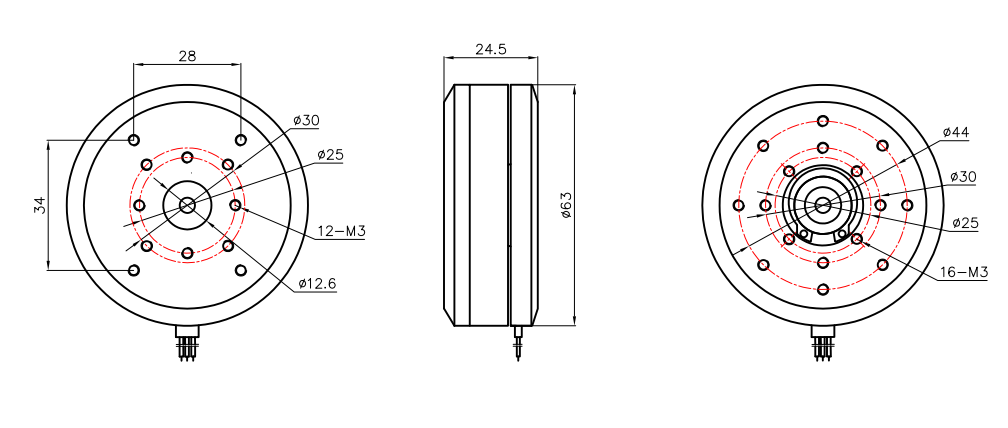

Motor size :63mm(OD)*24.5mm
Wire length (mm): Black JR connector silicone wire 530mm
Stator size :53mm(OD)*8mm
Motor structure :12N14P
KV Value:25
Stall torque N.M/V:0.368/3S
Internal resistance of coil Ω:15.5

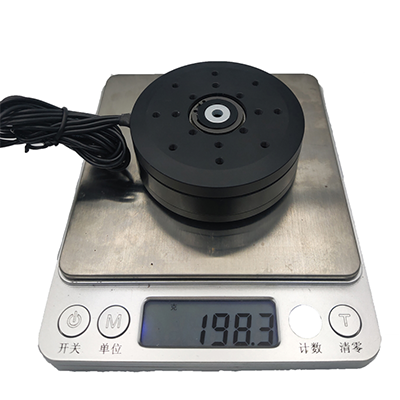

Motor weight including wire :198.3g
